SP-6

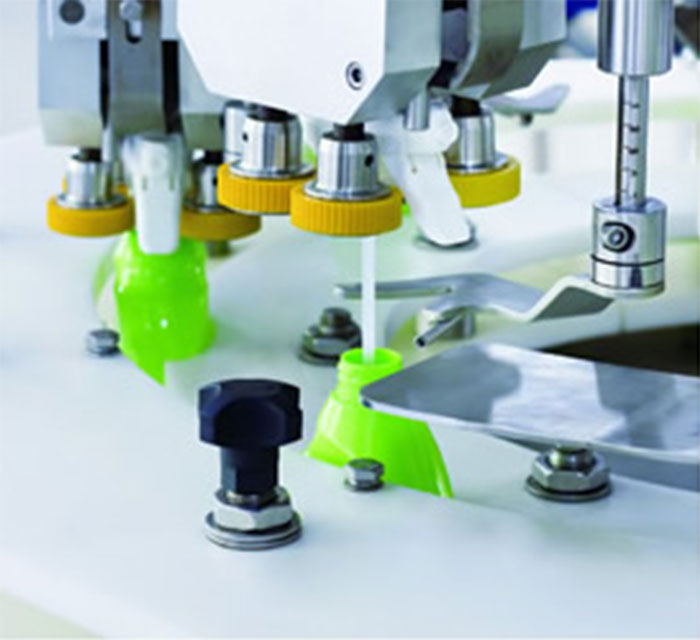

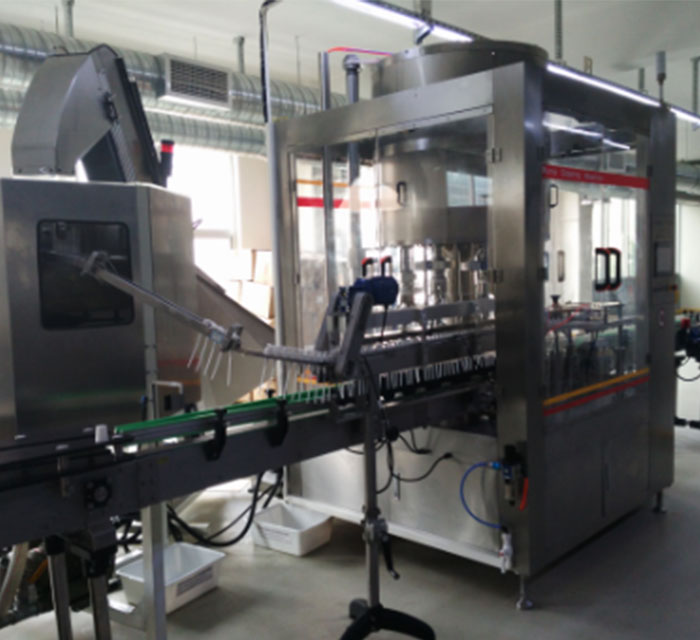

Four claws structure, obtained many patent on technology, suitable for pump caps, duck mouth caps, trigger caps with straw. PLC controlled ,integrated cap sending ,grasping ,capping ( can affiliate with automatic cap sorting machine). Automatic inlet cap and bottle position-setting and orientation, adjustable torque control. Gentle manipulation, no scratch and injury to caps and containers. Easy changeovers, one line capable of several products.
Four claws structure, obtained many patent on technology, suitable for pump caps, duck mouth caps, trigger caps with straw.
PLC controlled ,integrated cap sending ,grasping ,capping ( can affiliate with automatic cap sorting machine)
Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.
Gentle manipulation, no scratch and injury to caps and containers
Easy changeovers, one line capable of several productsConnected with filling machine and labeling machine easily
Module structure, manipulate on the touch screen, easy maintenances
Suitable for containers made of PET/PP/PE/HDPE and so on
Production capacity can achieve 4000-8000b/h, higher speed can be customized.
Applicable in cleaning agent, nebula , disinfectant and many other daily chemical products.
| Overal dimension(L×W×H) | 2000mm×1600mm×2600mm |
| Machine weight | 4500Kg |
| Suitable pump caps | can be customized |
| Diameter of pump cap | 30mm |
| Length of pump cap | ≤250mm |
| Number of capping heads | 8 (can be customized) |
| Capacity | ≤5000containers/hour |
| Torque control | ±0.3Nm |
| Qualified rate of capping |
≥98% (Container mouth center deviation less than 1mm, Container mouth face height deviation less than 1mm) |
| Power supply | AC 380V, 50Hz |
| Machine power | 4Kw |
| Air operated source | 0.6Mpa clean and stable compressed air |
No, Our factory will produce equipment according to the bottles and caps provided by customers.
We will responsible for all the quality problems.
Pattern needs 30-60 days.
Export standard package or special package according to customer requirement.
Yes, we are OEM supplier.
We have ISO9001, CE,SGS
Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.
It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.
Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.
The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
