ZHFX-1936B

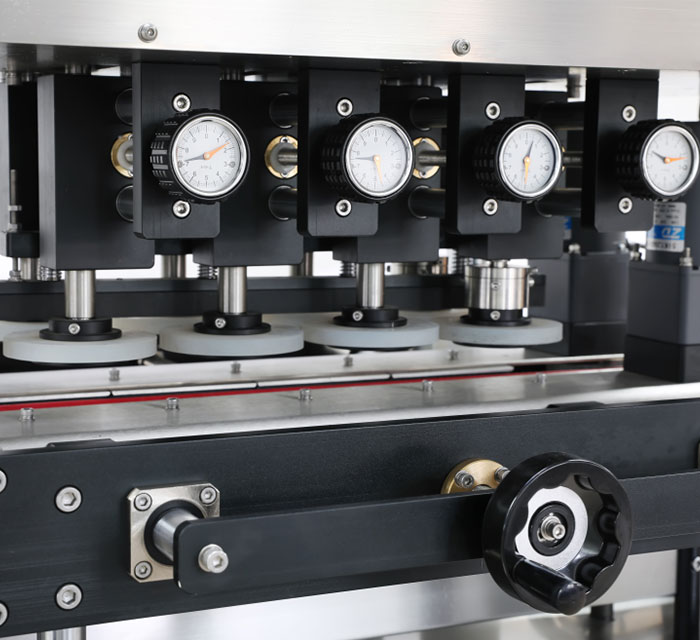

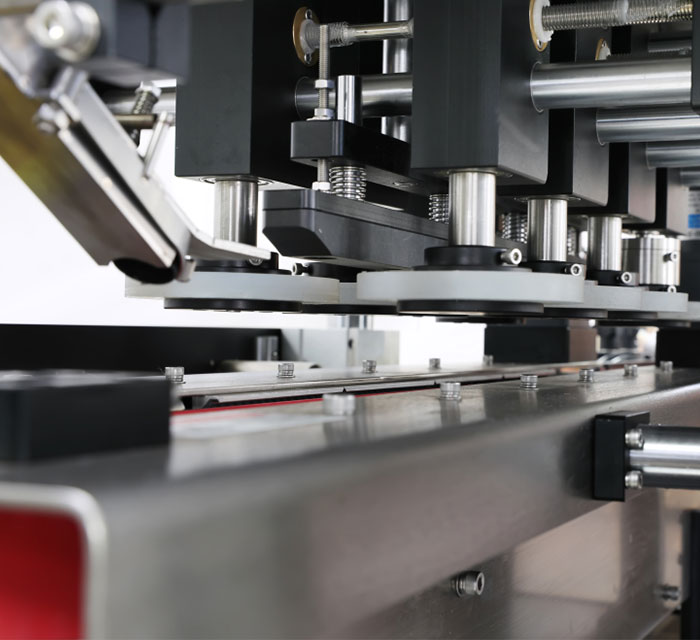

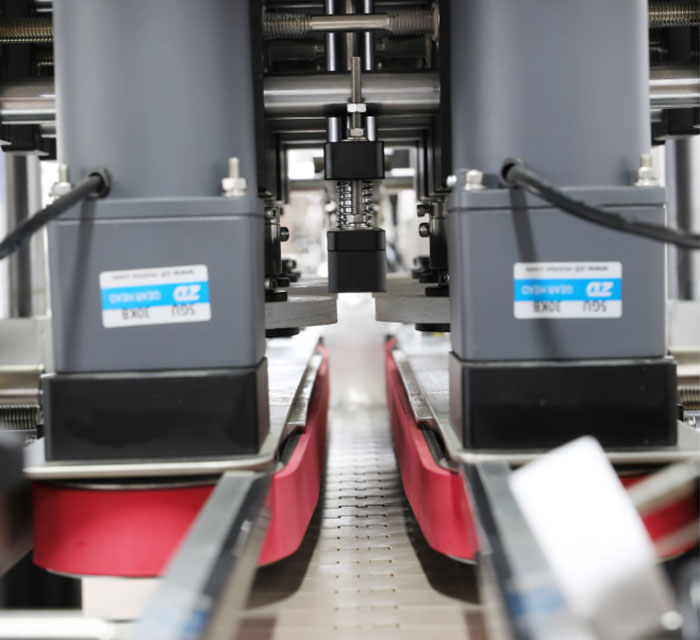

This machine is suitable for various material and different shape containers. Such as plastic bottles, glass bottles, and metal bottles. If we want to change different material,bottles or caps for capping, we don’t need replace any components, just adjusting the location of several components. No caps will be dispatched, if there is no bottle in the place. Cap elevator, conveyor, cap tightening machine and bottle clamping strap can be adjusted to meet the tightening requirements for various bottles and caps. The machine is made of excellent quality stainless steel, also applied to GMP standard requirement. (Custom-tailoring diversified for special specification)
This machine is suitable for various material and different shape containers. Such as plastic bottles, glass bottles, and metal bottles. If we want to change different material,bottles or caps for capping, we don’t need replace any components, just adjusting the location of several components. No caps will be dispatched, if there is no bottle in the place. Cap elevator, conveyor, cap tightening machine and bottle clamping strap can be adjusted to meet the tightening requirements for various bottles and caps . The machine is made of excellent quality stainless steel, also applied to GMP standard requirement. (Custom-tailoring diversified for special specification)
Current supply | 220 V ; 50Hz (or according to client voltage requirement) |
Power | 2.2kw |
Production speed | 0~6000 bottles/hour |
Container month diameter | Φ40mm-Φ100mm |
Suitable Cap diameter | Φ20mm-Φ50mm |
Machine Weight | 650 KGS |
Machine Dimension (L×W×H) | 2000mm x 850mm x 2050mm |
No, Our factory will produce equipment according to the bottles and caps provided by customers.
We will responsible for all the quality problems.
Pattern needs 30-60 days.
Export standard package or special package according to customer requirement.
Yes, we are OEM supplier.
We have ISO9001, CE,SGS
Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.
It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.
Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.
The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
