ZHFX-1A Full-automatic Single-head Capping Machine

ZHFX-1A

This is Linear Capping machine running with conveyor automatically.

This filling machine is a high-tech filling equipment controlled by

microcomputer PLC programmable, equip with photo electricity instruction and pneumatic action.

Accurate measurement: adopt servo control system

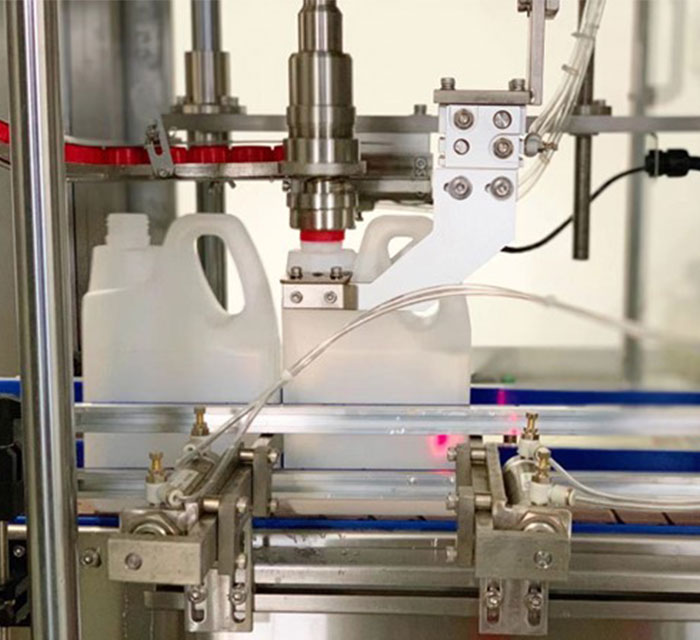

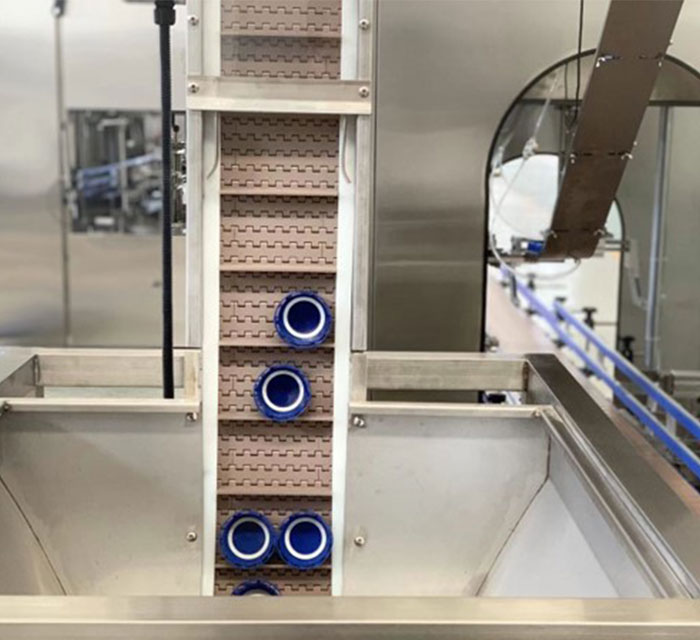

Bottles will be fixed by two cylinders and it can automatically arrange lid, taking lid and sending lid, it will grasp lid then capping under control of double-acting cylinder lifting stroke.

The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.

It suits for capping of 1-5kg bottle plastic caps.

Contact Us
ZHFX-1A Full-automatic Single-head Capping Machine
ZHFX-1A Full-automatic Single-head Capping Machine
ZHFX-1A Full-automatic Single-head Capping Machine
ZHFX-1A Full-automatic Single-head Capping Machine

This is Linear Capping machine running with conveyor automatically.

This filling machine is a high-tech filling equipment controlled by

microcomputer PLC programmable, equip with photo electricity instruction and pneumatic action.

Accurate measurement: adopt servo control system

Bottles will be fixed by two cylinders and it can automatically arrange lid, taking lid and sending lid, it will grasp lid then capping under control of double-acting cylinder lifting stroke.

The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.

It suits for capping of 1-5kg bottle plastic caps.

Technical Parameters

Capacity

400-500 Bottles/hour For 20L

Suitable Bottle Diameter

≤320(L)*220(W)mm

Suitable Bottle Height

250-450mm

Air Pressure

0.6-0.8Mpa

Power

2KW

Voltage

3 Phase 380V 50HZ

Weight

400KG

Dimension

2000*1300*2000MM




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS

Food Products & Beverages

Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.

Cosmetic & Personal Care Products

It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.

Pharmaceutical Filling Machines

Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.

Household & Industrial Cleaners

The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
