ZHJ-200 Automatic Cartoning Machine

ZHJ-200

ZHJ-200 multi-functional cartoner is a new packaging machine for solid Al/PVC or Al/Al blisters cartoner, which is developed and designed by ourselves according to our years experiences and expectations and requirements of leechdom industry, absorbing the excellence of same machines China and abroad.

Characteristics

This machine integrates mechanic, electric, optic and pneumatic technology into a consummate system, driving by servo motor which with high quality, stable running and exact orientation, strap transmission, no need any lubricant;

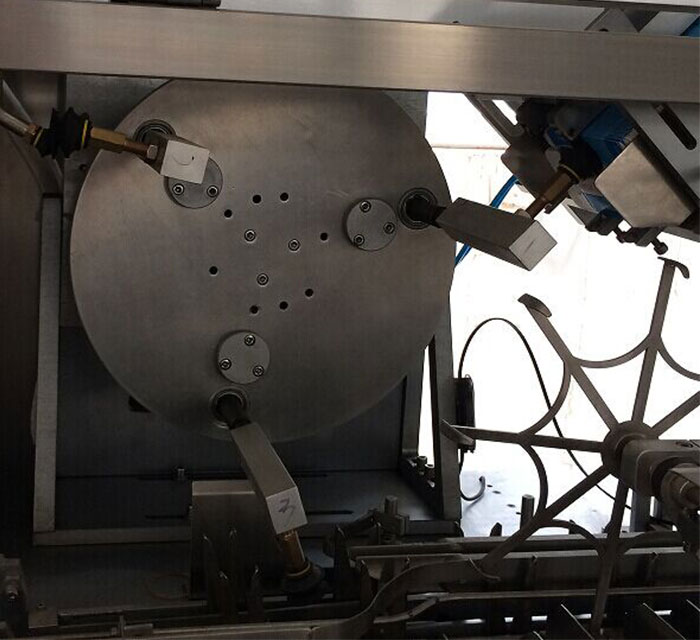

Outspread of box adopts gear transmission, planet wheel work principle, driving continuously by motor, vacuum sucks box, program control, which realize the functions of box sucking, drawing out and outspread and put into positions etc;
Easy to adjust when change box size;
Simple structure, stable and high speed running, vacuum controlled, adjustable time which is better in China, is our new self-designed patent mechanism;
Manual sheet fold automatically, box open automatically and manual sheet and box encasing automatically too. Lot number printing on box (steel letter or ink spray), credible checking system, eliminate empty box and finished products export.

Technical Parameters

Model	ZHJ-200
Production capacity(box/min)	90-200
Max.size of box(mm) (L×W×H)	200×70×60
Min.size of box(mm) (L×W×H)	75×25×15
Specification of box	250-300g/m2
Max.size of leaflet(mm) (L×W×H)	260×190mm
Min.size of leaflet(mm) (L×W×H)	100×100mm
Specification of leaflet	55-65g/m2
Volume of air consumption	20m3/h(pressure 0.50—0.7MPa)
Power of motor(kw)	2.2kw
Power supply	380V 50HZ
Overall Dimension(L×H×W)	4380 ×1460 ×1800mm
Weight(kg)	2500

ZHJ-150 Automatic Cartoning Machine

ZHJ-260 Automatic Carton Machine

Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS
