ZHLJ-A-80B Smart Vertical Cartoning Machine

ZHLJ-A-80B

The new series cartoning machine built with “BALCONY” design, allowing the mechanical working parts separated from the packaging area. It respects the present accident prevention maintenance and hygienic laws. The machine works with intermittent motion and with electric synchronisms controls, PLC and touch display control system functions recall-able; it is possible memorizing 100 menus with relative data for 100 different productions.

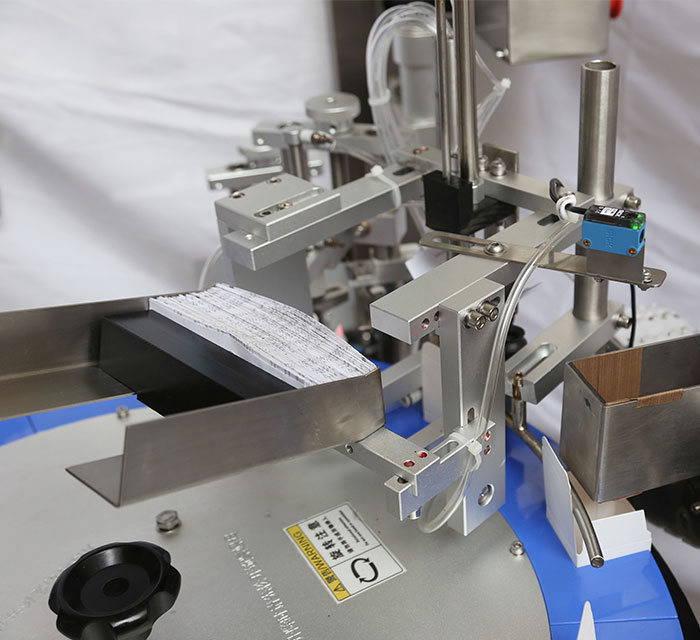

Conveyor type box magazine for easy loading boxes and change over to new box size easily. Special box open device with two side suction cup by means of pull open the box stably.

Contact Us
ZHLJ-A-80B Smart Vertical Cartoning Machine
ZHLJ-A-80B Smart Vertical Cartoning Machine
ZHLJ-A-80B Smart Vertical Cartoning Machine
ZHLJ-A-80B Smart Vertical Cartoning Machine
ZHLJ-A-80B Smart Vertical Cartoning Machine

Major Characteristics:

The new series cartoning machine built with “BALCONY” design, allowing the mechanical working parts separated from the packaging area. It respects the present accident prevention maintenance and hygienic laws. The machine works with intermittent motion and with electric synchronisms controls, PLC and touch display control system functions recall-able; it is possible memorizing 100 menus with relative data for 100 different productions.

Conveyor type box magazine for easy loading boxes and change over to new box size easily. Special box open device with two side suction cup by means of pull open the box stably.

Technical Parameters
Shape size 1600mm * 1200mm * 1500mm
Production capacity 30-50 box/min
The machine power 1 KW
The gas consumption 100-160 L/min
Carton size L: 20-80mm  W: 20-80mm  H: 60-200mm
(special specifications can be customized)




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS
