ZHGX-60EM
ZHGX-60EM Type machine is designed for suppository tube filing and capping.The machine can finish the whole packaging progress of automatically unscrambling,filling,cap sorting,cap feeding,capping and finishing product outlet.

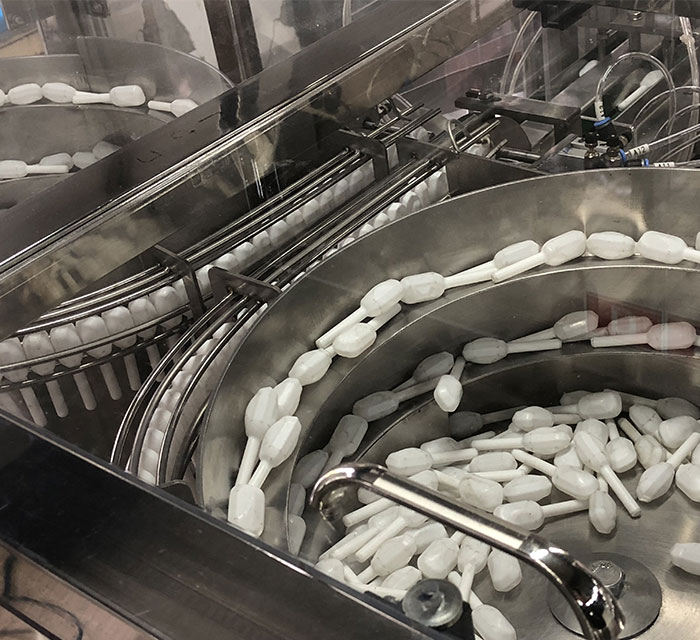

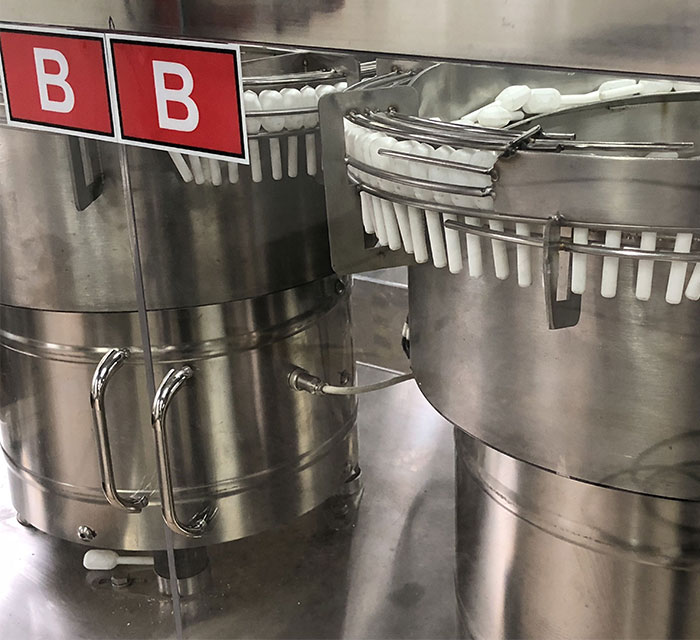

Operator manually place the tubes into the tube loading hopper,tube loading hopper will automatically deliver the empty tubes to the tube unscrambler for feeding the tubes to the main machine.
After entering into the main machine, the ceramic synchronized filling system will doing the tracking filling.

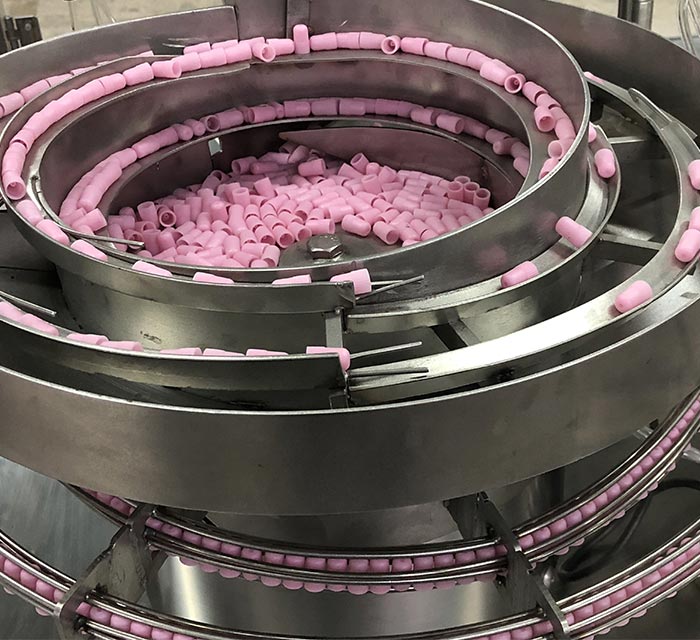

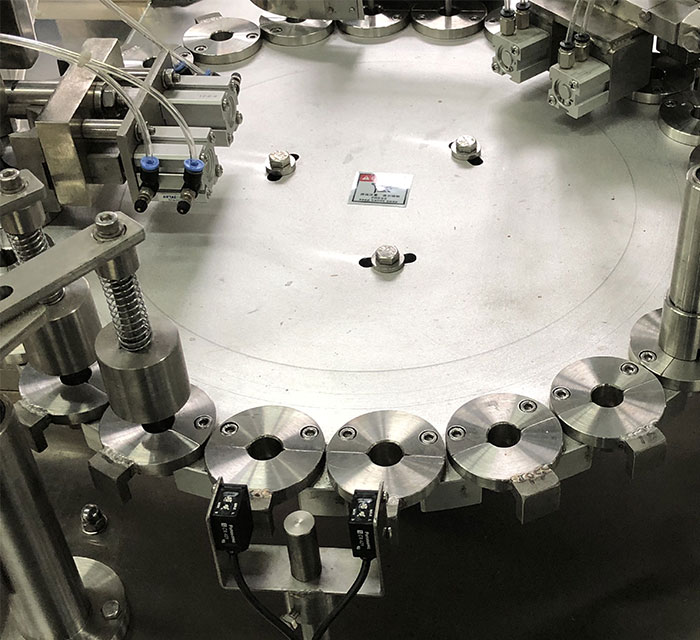

After filling tubes will enter into the capping station.The cam cap picking system will pick up the caps from the cap starwheel and doing the tracking cap pressing progress.
ZHGX-60EM Type machine is designed for suppository tube filing and capping.The machine can finish the whole packaging progress of automatically unscrambling,filling,cap sorting,cap feeding,capping and finishing product outlet.
Operator manually place the tubes into the tube loading hopper,tube loading hopper will automatically deliver the empty tubes to the tube unscrambler for feeding the tubes to the main machine.
After entering into the main machine, the ceramic synchronized filling system will doing the tracking filling.
After filling tubes will enter into the capping station.The cam cap picking system will pick up the caps from the cap starwheel and doing the tracking cap pressing progress.
| Filling range | 4-40ml |
| Filling heads quantity | 2 heads |
| Capping heads quantity | 2 heads |
| Speed | 40bottles per min |
| Filling accuracy | ≤±1.5% |
| Compressed Air | 0.4-0.6Mpa |
| Air consumption | 3㎡/Hour |
| Power | 1.3KW |
| Electric Source | 220V 50Hz |
No, Our factory will produce equipment according to the bottles and caps provided by customers.
We will responsible for all the quality problems.
Pattern needs 30-60 days.
Export standard package or special package according to customer requirement.
Yes, we are OEM supplier.
We have ISO9001, CE,SGS
Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.
It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.
Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.
The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
