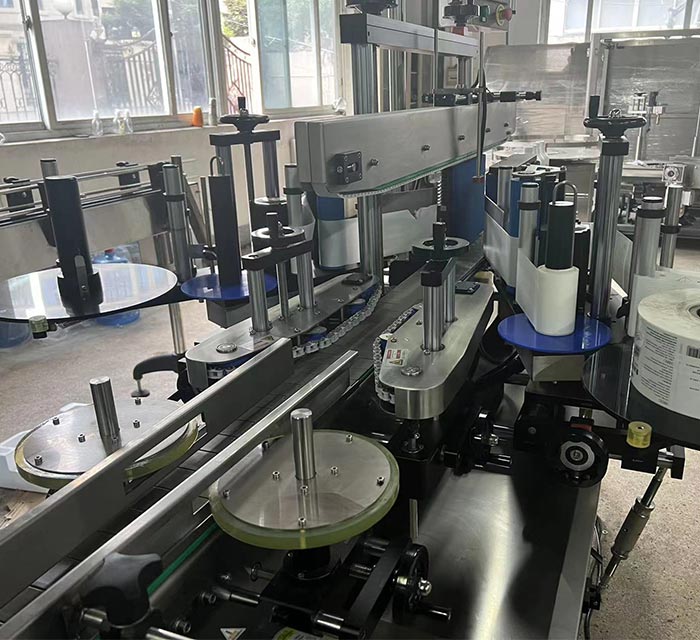

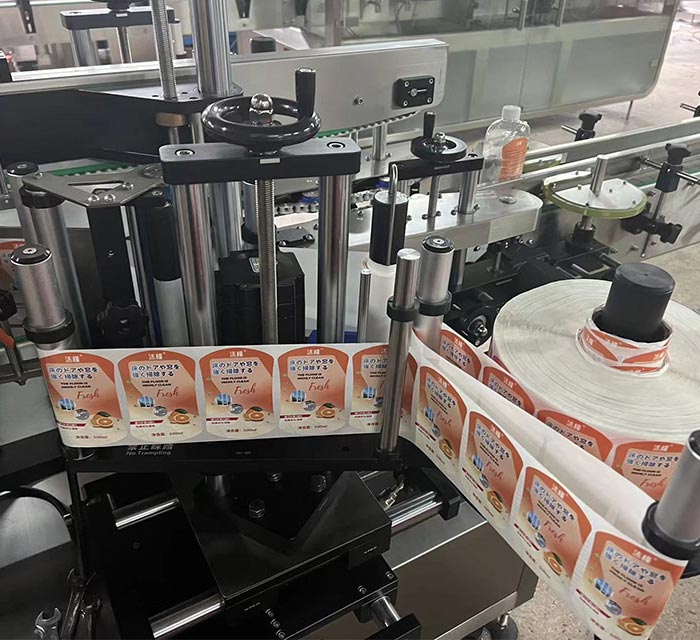

ZHTBS02 Adhesive Front and Back Labeling Machine

ZHTBS02

This labeling machine is suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other lines. Double side labeler for rectangular bottles and square bottles. It is automatically controlled by computer (PLC) and touch screen control panel, so to achieve easy operating. If there is no bottle, it will not label. More than ten groups of labeling parameters can be memorized. The specifications can be easily changed. Servo motor helps to realize closed-loop control. It has advantages like low malfunction rate and high efficiency as well as fast speed.

Contact Us
ZHTBS02 Adhesive Front and Back Labeling Machine
ZHTBS02 Adhesive Front and Back Labeling Machine
ZHTBS02 Adhesive Front and Back Labeling Machine
ZHTBS02 Adhesive Front and Back Labeling Machine

1.Double side labeling for rectangular, square bottles, and elliptical bottles.
2.Controlled by computer (PLC) and touch screen control panel, so to achieve easy operating.
3.With volume of 0 to5L.
4.Labeling speed range : 0~26 meter/minute

Major Characteristics
1.This labeling machine is suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other lines.
2.Double side labeler for rectangular bottles and square bottles. It is automatically controlled by computer (PLC) and touch screen control panel, so to achieve easy operating.
3.If there is no bottle, it will not label. More than ten groups of labeling parameters can be memorized.
4.The specifications can be easily changed. Servo motor helps to realize closed-loop control. It has advantages like low malfunction rate and high efficiency as well as fast speed.
Features
With volume of 0 to5L.
Labeling speed range : 0~26 meter/minute
  • Double side labeling for rectangular, square bottles, and elliptical bottles.
  • Controlled by computer (PLC) and touch screen control panel, so to achieve easy operating.
Technical Parameters
Power supply AC220V; 50Hz (or according to client voltage requirement)
Power 3kw
Labeling speed range 0~26 meter/minute
Suitable label roll inner Diameter size Ф75mm
Suitable label roll outside Diameter size Ф350 Maximum
Standard label high size 300mm
Maximum label high size 300mm
Machine weight 750kg
machine dimension ( L×W×H) 3000mm×1200mm×1600mm




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS
