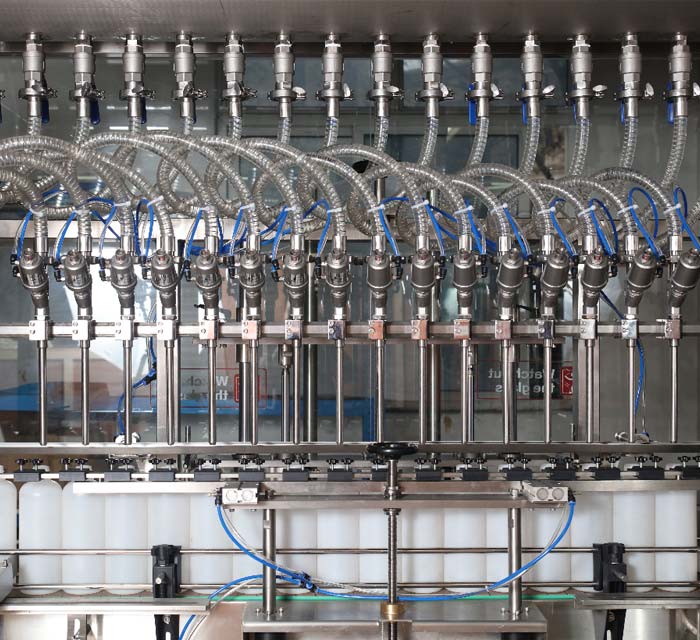

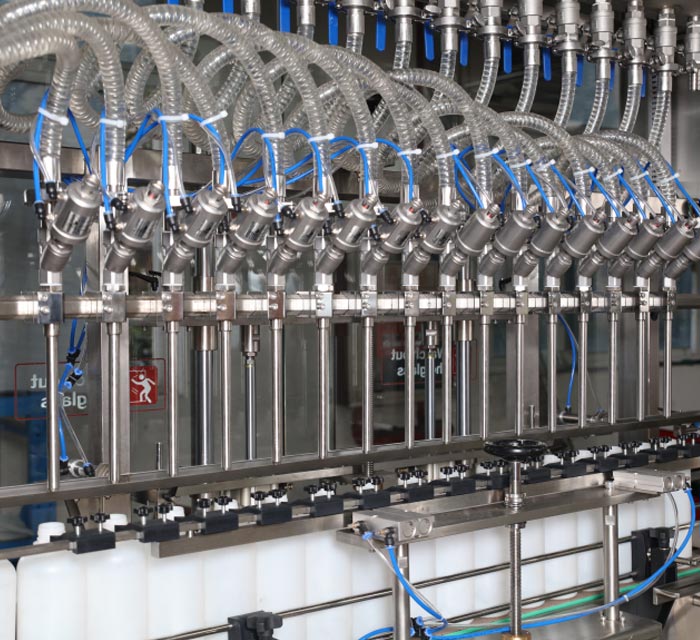

ZHBL-1916H
Applicable Material: seed coating, SC, Cream high-viscosity materials etc.
Accurate measurement: The servo control system to ensure that the total can reach a constant position of the piston.
Variable speed filling: In the filling process, when close to the target filling volume to achieve a slow speed can be applied when filling, to prevent fluid overflow bottle pollution.
To facilitate the adjustment: Replacement of filling in the specifications only in the touch screen you can change the parameters, and all the filling for the first time changes in place.
Fine-tune the dose on touch screen to adjust.
Applicable Material: seed coating, SC, Cream high-viscosity materials etc.
1. Accurate measurement: The servo control system to ensure that the total can reach a constant position of the piston.
2. Variable speed filling: In the filling process, when close to the target filling volume to achieve a slow speed can be applied when filling, to prevent fluid overflow bottle pollution.
3. To facilitate the adjustment: Replacement of filling in the specifications only in the touch screen you can change the parameters, and all the filling for the first time changes in place.
Fine-tune the dose on touch screen to adjust.
| Applicable bottle diameter | Φ40-100mm |
| Height for bottle | 80-230mm |
| Measure precision | ±1%(within 200ml)，±0.5%(200-1000ml) |
| Volume | 80～1000ml |
| Production capacity | ≤6800b/h |
| Air pressure | 0.6-0.8Mpa |
| Amount of Air-consuming | 200l/min |
| Power source | 220V、50Hz |
| Total power | 2.5KW |
| Weight | 1200kg |
| External dimensions | 2440×1150×2300(L×W×H)mm |
No, Our factory will produce equipment according to the bottles and caps provided by customers.
We will responsible for all the quality problems.
Pattern needs 30-60 days.
Export standard package or special package according to customer requirement.
Yes, we are OEM supplier.
We have ISO9001, CE,SGS
Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.
It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.
Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.
The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
