ZHBL-1920N Controlled Piston Filling Machine

ZHBL-1920N

This is our newly developed filling machine . It has reached the international advanced level ,partial has exceeded the similar product . It is abroad , also certified by the world famous chemical magnate . This is a inline piston filling machine for cream and liquid

This machine adopts programmable controller (PLC) control, touch screen operation, has the advantages of convenient adjustment, wide application range, etc..

This machine adopts mechatronics technology advanced, replacing any filling specification only need to modify the parameters in touch screen, can also fill in each filling head are integrally adjusted greatly, can filling amount on each head of a single micro adjustment.

Contact Us
ZHBL-1920N Controlled Piston Filling Machine
ZHBL-1920N Controlled Piston Filling Machine
ZHBL-1920N Controlled Piston Filling Machine
ZHBL-1920N Controlled Piston Filling Machine

Feature
  • Suitable for fluid no gas and filling semi liquid.
  • Adopts PLC and touch screen control.
  • The use of submersible filling.
  • In accordance with GMP standard.
Major Characteristics
  • Application of touch screen technology, make operation more reliable, convenient, friendly man-machine interface. The photoelectric sensor, proximity switches are used in advanced sensing element, make sure no bottle filling, plugging the bottle will automatically stop and alarm.

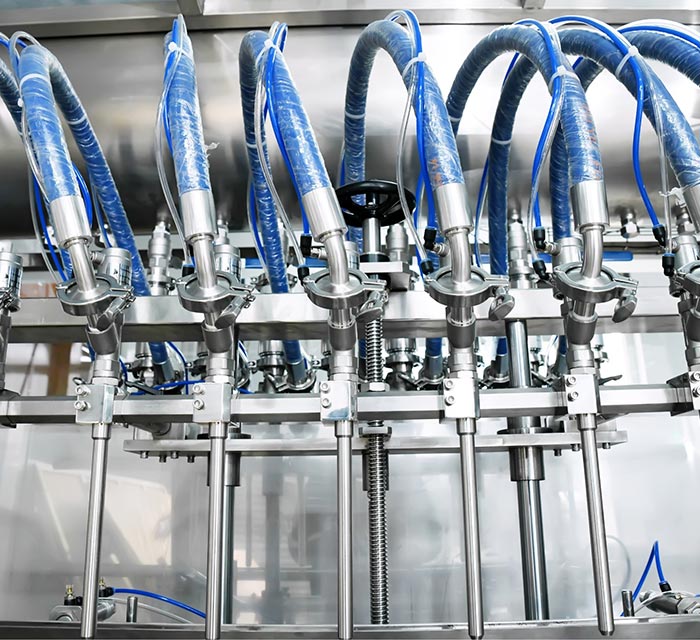

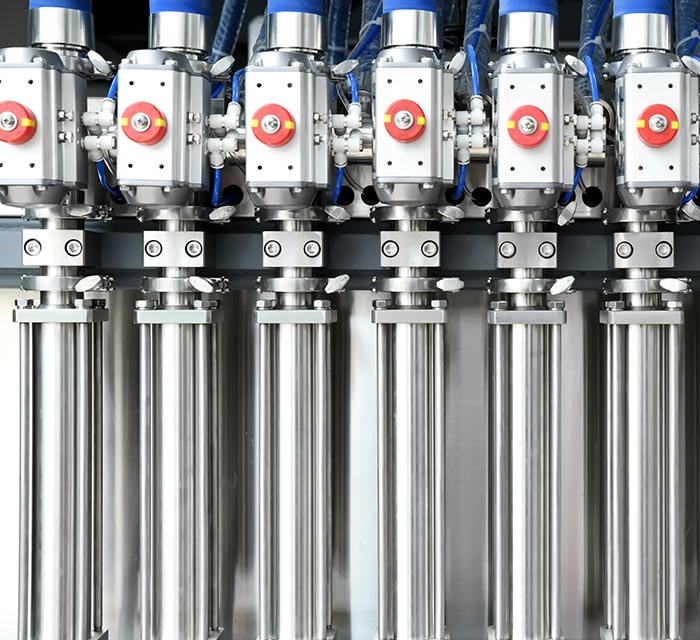

  • Filling way is submerged, using different material sealed piston ring, to meet the different characteristics of filling materials.
  • The machine made according to GMP standard requirements, the pipeline is connected with fast assembly, disassembly and cleaning convenience, and material contact parts and exposed parts are made of high-quality stainless steel materials. The safety, environmental protection, health, beauty, can adapt to a variety of environmental work.
Technical Parameters

Type

DGP-Z-6D

DGP-Z-8D

DGP-Z-10D

DGP-Z-12D

DGP-Z-16D

DGP-Z-20D

Size

2000mm(L)×1100mm(W)×2200mm(H)

 2280(L)

2400mm(L)

Heads

 6

8

10

12

16

20

Suitable bottles

diameter:¢40mm~¢110mm  height:80mm~350mm

Bottle diameter

 ≥¢18mm

Packaging specifications

50ml~1000ml

Production capacity(1L计)

1800bottle/hour

2400bottle/hours

3000bottle/hours

3600bottle/hours

4800bottle/hours

6000bottle/hours

Measurement error

±0.2%

 ±0.2%

 ±0.2%

  ±0.2%

  ±0.2%

  ±0.2%

Power source

220V;50/60HZ

Power

1.1KW

1.5KW

1.5KW

2.2KW

2.2KW

3KW

 Air source

0.55MPa~0.65MPa Clean and stable gas source




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS

Food Products & Beverages

Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.

Cosmetic & Personal Care Products

It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.

Pharmaceutical Filling Machines

Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.

Household & Industrial Cleaners

The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
