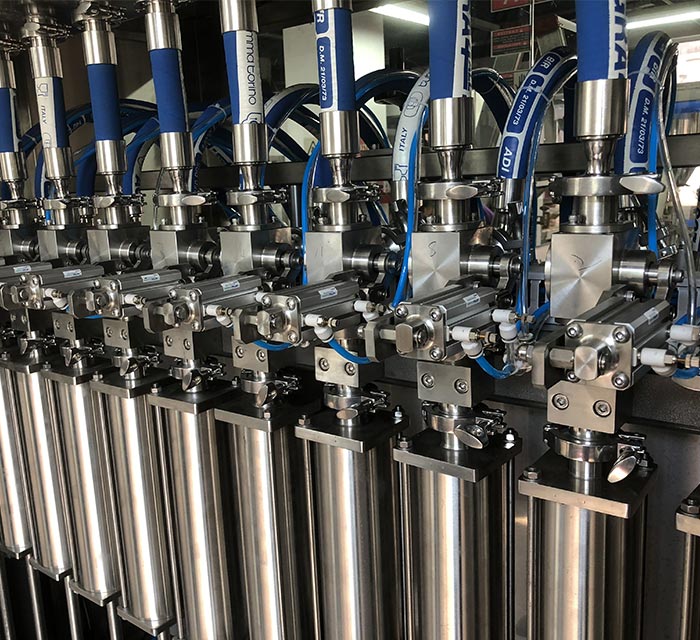

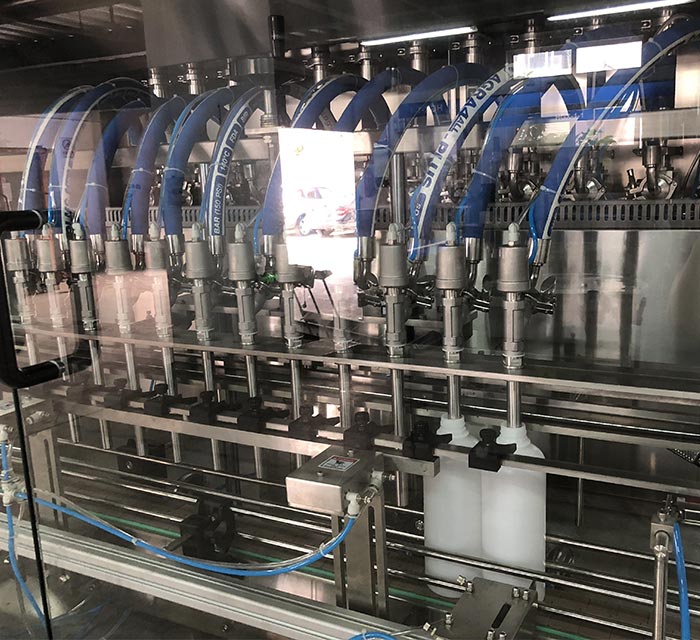

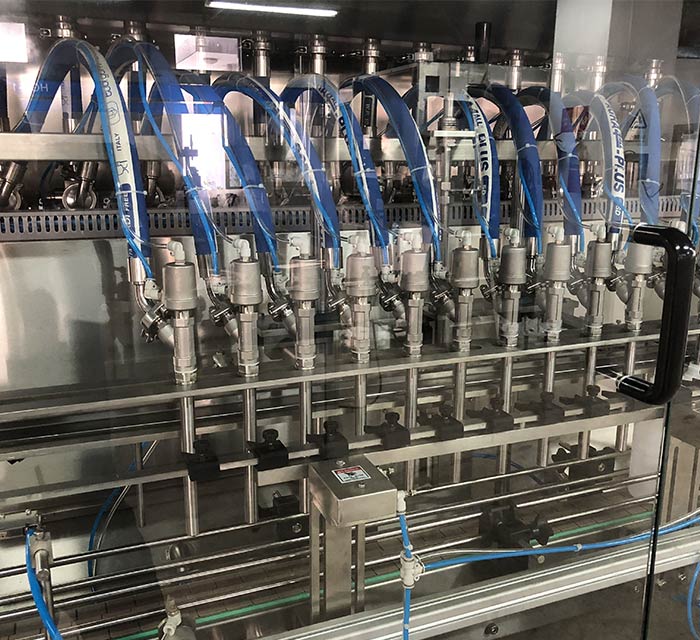

ZHBL-1922C PLC Controlled Piston Filling Machine

ZHBL-1922C

This is our newly developed filling machine, the whole parameters have matched the international advanced level, especially, the partial have exceeded the relative line aboard, also certified by the world famous chemical magnate.

Contact Us
ZHBL-1922C PLC Controlled Piston Filling Machine
ZHBL-1922C PLC Controlled Piston Filling Machine
ZHBL-1922C PLC Controlled Piston Filling Machine
ZHBL-1922C PLC Controlled Piston Filling Machine
ZHBL-1922C PLC Controlled Piston Filling Machine

Feature
  • The external surface of this machine is made of excellent stainless steel. Good appearance, apply to GMP standard.
  • This is an inline piston filling machine for cream and liquid. PLC and touch screen
  • control panel are used to control material filling.
  • Accurate measuring, advanced structure, stable operating, low noise, large adjusting range, and fast filling speed.
  • It is also suitable for materials that are easily volatilizing, easily crystallizing or easily bubbling; strong corrosive liquid for rubber, plastic, high viscous liquid, and semi-flow liquid.
  • Adjust and meter value in the control panel of touch screen, meanwhile, each filling head also can be adjusted.
Technical Parameters
mainunit dimension (L×W×H) 2000mm×1100mm×2200mm
filling heads 12
bottle  size Diameter φ40mm~φ100mm   High:80mm~300mm
bottle mouth size ≥φ18mm
filling volume 50ml~1000ml
production capacity ≤6000 p/h
error range 50ml-100ml≤±1ml 100ml~500ml±0.5% 500ml~1000ml±0.3%
power supply 220V; 50HZ
Power 1.5kw
pneumatic (air-operated) source 0.55Mpa~0.65Mpa




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS

Food Products & Beverages

Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.

Cosmetic & Personal Care Products

It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.

Pharmaceutical Filling Machines

Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.

Household & Industrial Cleaners

The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
