ZHCJ-4A

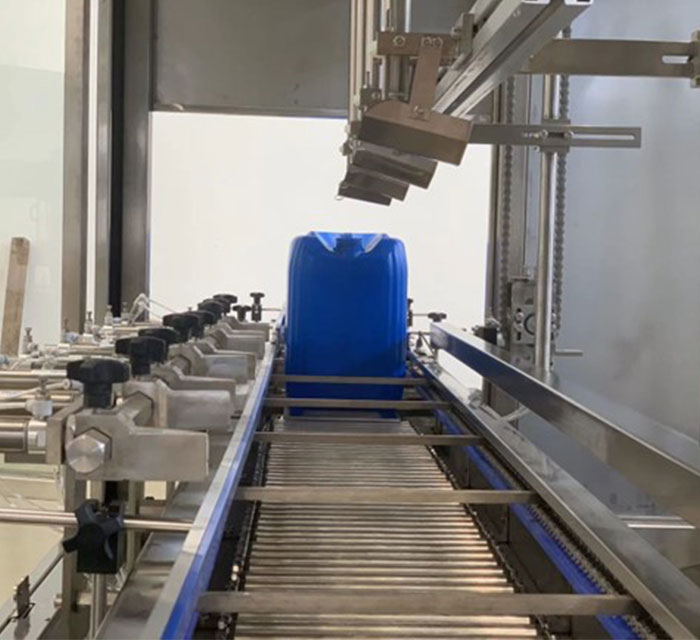

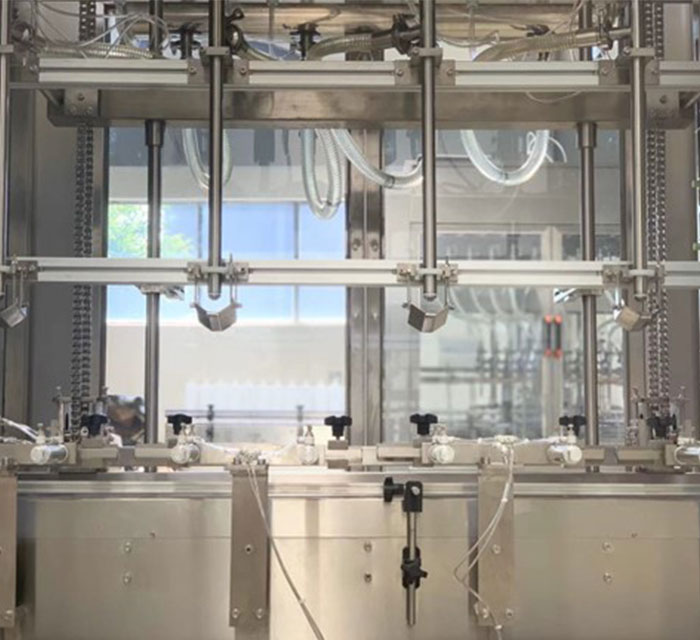

This weighing filling machine is for filling 5kg to 25kg liquid..
Each filling head has the weigh and feedback system, each filling head can be regulated.
This type filler adopts PLC to control, touch screen control panel.
It applies dive method to fill and it reduces foam.
It automatically achieves counting inlet bottle, gravity filling, and bottle outlet. It is especially good for filling SL, edible oil and lubrication. It is a nice choice for foodstuff pharmacy, cosmetic and chemical industries.
Each filling head has the weigh and feedback system, each filling head can be regulated.
Photoelectric sensor, approximate switch and other electric elements are of the international famous brands. It ensures no container miss filling. The host machine will alarm if there is any container blocked.
Number of filling Head | 4 |
Filling range | 5-25kg |
Bottle size range | L: 160mm~360mm W: 140mm~260mm H: 250mm~500mm (Min: 140 × 200 × 320 mm , Max: 260 × 290 × 500 mm) |
Diameter of bottle mouth | ≥Φ40mm |
Power Supply | 380V/220 V, 50/60 Hz |
the total power | 2.5 kW |
Weight | about 1250 kg |
measurement accuracy |
± 10g as well as the continuity and stability of the material supply) |
Production capacity | 200-250 bottles / hour for 4 filling heads for 20L |
Outline Dimension (L×W×H) | 2300mm × 1300mm × 2300mm for 4 head |
No, Our factory will produce equipment according to the bottles and caps provided by customers.
We will responsible for all the quality problems.
Pattern needs 30-60 days.
Export standard package or special package according to customer requirement.
Yes, we are OEM supplier.
We have ISO9001, CE,SGS
Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.
It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.
Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.
The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
