ZHS8 Automatic Liquid Filling Machine

ZHS8

This machine is suitable for trades , such as medicine , food , cosmetics , chemical industry , light industry ,etc.,  Easy to install and easy to operate.

Contact Us
ZHS8 Automatic Liquid Filling Machine
ZHS8 Automatic Liquid Filling Machine
ZHS8 Automatic Liquid Filling Machine
ZHS8 Automatic Liquid Filling Machine

Feature

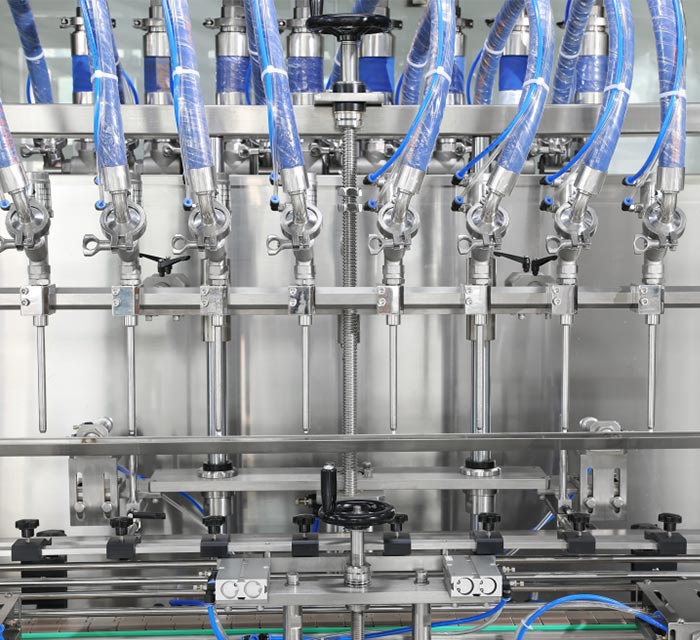

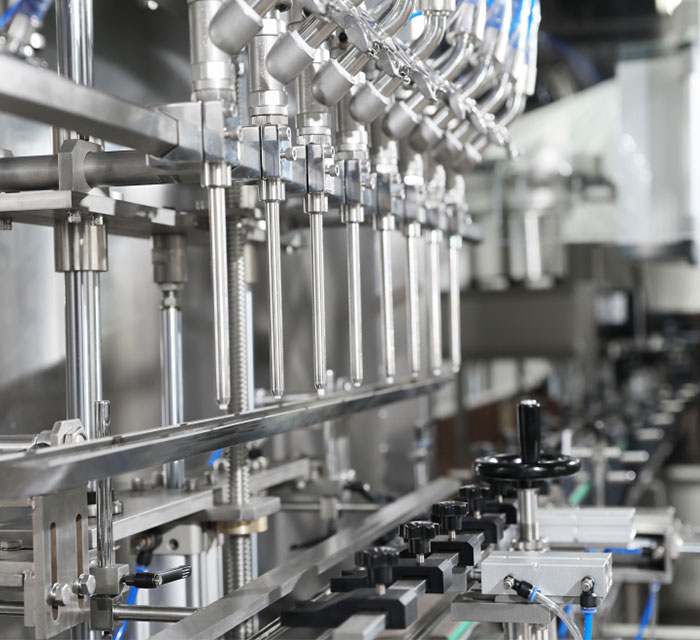

  • Filling controlled by servo motor ,8 nozzles fill simultaneously.
  • Rapid cleaning, rapid adjustment, stepless adjustment of speed for volume cylinder, suitable for filling of different specification and different liquid.
  • Only one adjustment necessary for filling quantity, micro-adjustment for each volume cylinder, high precision and good consistency of filling.
  • Contact material parts is 316L stainless steel and silicone rubber, in conformity with GMP standard.&
  • Filling piston cylinder controlled by stepless speed adjustment of imported speed reducing motor, suitable for aqueous liquid and viscous liquid.
  • Inertia eliminated by imported electro-magnetic clutch and brake, high precision of filling.
  • Man machine interface and PLC communication. Only simple setting on screen is necessary for commissioning equipment and changing types.
  • Bottle charging, positioning, filling, and bottle discharging are all automatic, if the bottle is not on the right position, the bottle is blocked, or the filling pipe is not inserted into the bottle when filling, the equipment will protect automatically and continue to operate after eliminating the trouble.
Technical Parameters

Capacity

50-60pcs/min

Accuracy

<±1﹪

Voltage

3P 380V/220V (Optional)50-60Hz

Power

2kW

Air Compressor

0.5-0.6Mpa

Size

3400×900×1700mm

Filling range

20-220ml

50-520ml

100-1020ml




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS

Food Products & Beverages

Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.

Cosmetic & Personal Care Products

It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.

Pharmaceutical Filling Machines

Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.

Household & Industrial Cleaners

The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
