ZHDF-160B

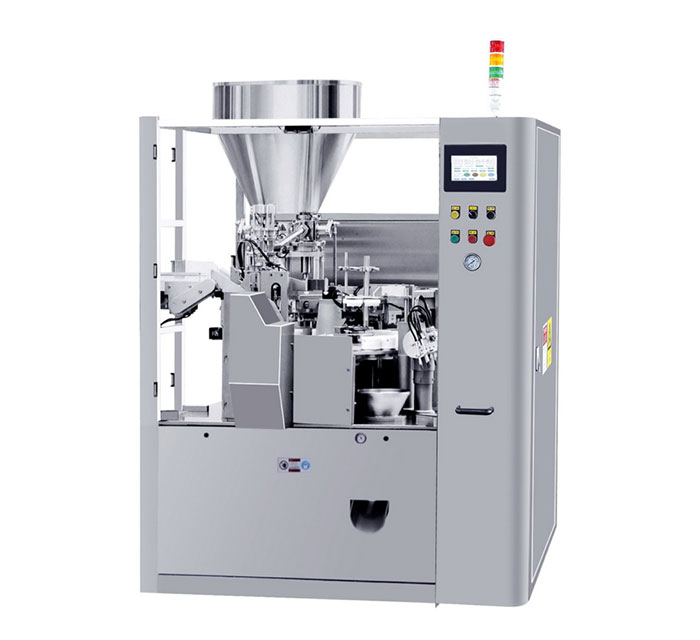

ZHDF-160B The automatic tube filling and sealing machine is mainly used to filling ointment or viscous fluid materials into Aluminum tube, plastic tube or composite tube. And then seal the tubes tail. Which machine adopts a new type dosing pump with stainless steel butterfly valve which matches with screw tiny adjustment outfit. Measure exactitude also in compliance with the standard of GMP requirement. Adopt PLC program-able control as well as Photoelectricity identify outfit, orientation accurately and reliably, change frequency to control the machine speed, Used FuKaiShen index drives and international advanced tube sealing systems.
Technique Parameter
Tube material |
Aluminum/Plastic、Composite tube |
Tube seat quantity |
40 Site |
Tube diameter |
ф11~ф50 mm |
Sealing systems |
Machine tuck/Hot air |
Dosing range |
2~300 ml |
Speed |
100-120 Tube/min |
Motor power |
2.3 KW |
Control speed mode |
Frequency modulation |
Dimension(L×W×H) |
2950×1310×2300 mm |
Weight |
3000 kg |
No, Our factory will produce equipment according to the bottles and caps provided by customers.
We will responsible for all the quality problems.
Pattern needs 30-60 days.
Export standard package or special package according to customer requirement.
Yes, we are OEM supplier.
We have ISO9001, CE,SGS
Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.
It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.
Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.
The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
