Name: Automatic Tube Filling And Sealing Machine ZHF-100A
Brand: Zungwan
SKU: 00078
Rating: 4.1 (89 reviews)

Automatic Tube Filling And Sealing Machine ZHF-100A

ZHF-100A

Siemens PLC system

Siemens electric motor and eletric appliance part

American photoelectricity and sensor

Germany FESTO pneumatic component

PLC human-machine interface

ZHF-100A Automatic Tube Filling And Sealing Machine

Feature

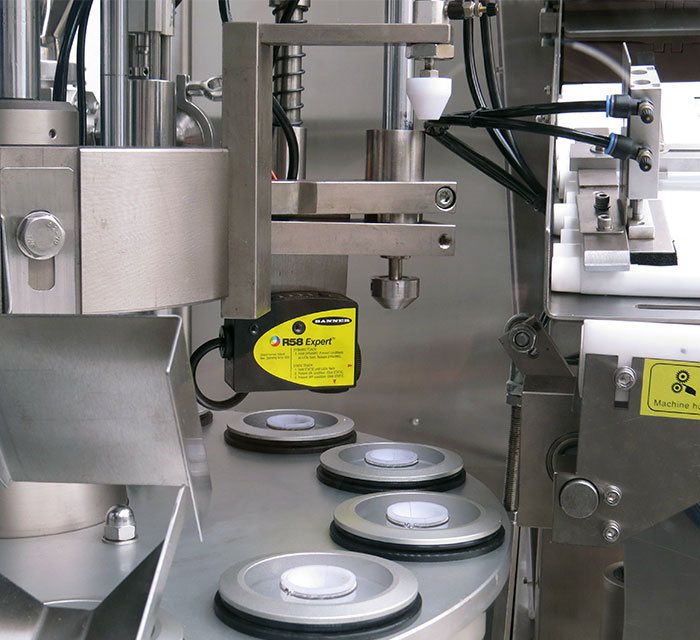

Tubes flippered into and pressed down into the tube pucks automatically
Adopt the spring tube pucks ensuring the same height of sealed tail.
Using automatic right color systems ensuring the automatic right superscript of oval or other special-shaped tubes.
Adopt mechanical drive mode filling system ensuring the stability of loading.
Rising puck style for filling stage.
Adopt original binding LEISTER air heater
Hot air inside sealed the tube,cold water circle-cooled the outer wall of the tubes.That ensured the effect of the sealing.
Exhaust the harmful gases outdoors by fan (made in Taiwan)
After sealing, equipped with air-cooled systems, to avoid heat transfer to the paste
PLC fully automatic control system
High-definition, visual stainless steel frame
The connectiong of emulsifier and filling machine can be easily achieved
The operation of different diameters can be easily changed
Filling、sealing and code-printed can be finished in one machine
Have the tubes auto setdown, tubes auto purge,the mark auto fund,and auto filling and sealing functions.
The speed can be stepless frequency convert,the tube setdown function can be finished by main machine matching with console model and big capacity tube store.
The product quantity can be controlled
The code mechanical hand print the code automatically in the request position
The data can be showed and controlled directly by human-machine interface

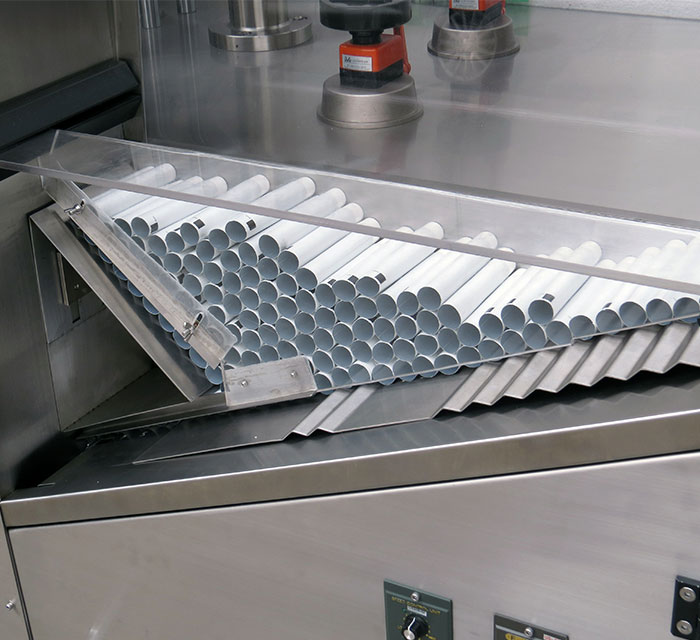

Console model and big capacity tube store.
FESTO original binding vacuum generator controlled the on tube adsorption positioning device

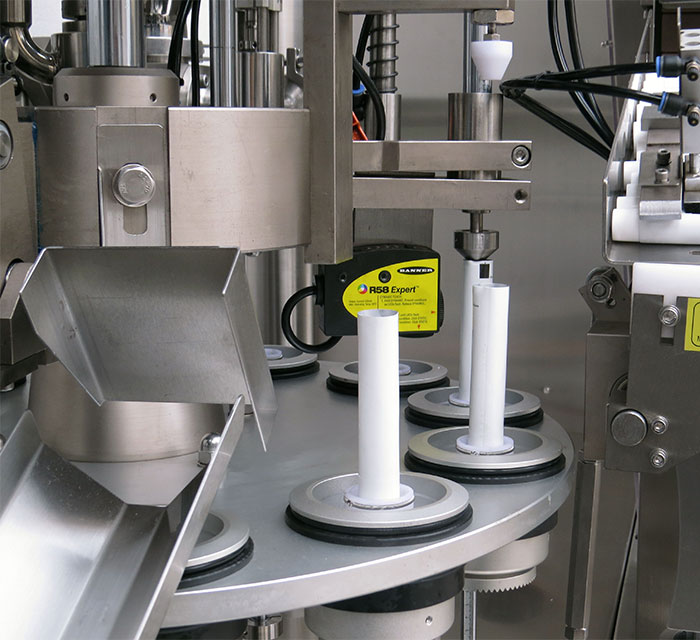

Adopt tube direction upsidedown examination system,Omron photoelectric cell can test the upsidedown tubes accurately
Cam indexing
Automatic cleaning and the dust accumulates recycling system

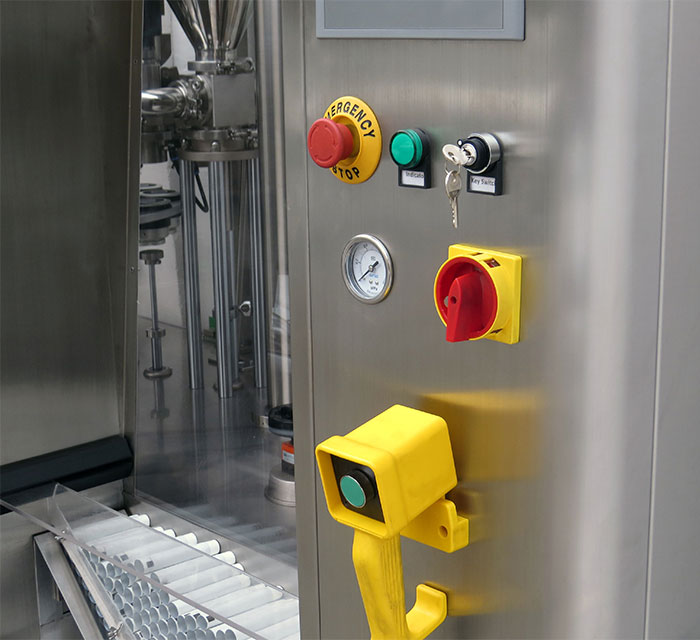

Have the malfunction alarming、the machine gate openning and over-loading stopping device
When filling is finished, the end is blown away by the air blower and cut off ensuring high viscosity materials filling.
Column model heat preservation agitation system.(optional).
Ultrasonic wave material position automatic detection system.
The material position can be accurately detected and can be showed derectly on the touch screen with the match of the BANNER ultrasonic wave position automatic detection system and Siemens module. (optional)
No tube no fill

Technical Parameters

Metal tube	10-35mm
Plastic tube and compound tube	10-60mm
The maximal volume
Metal tube	1-150ml
Plastic tube and compound tube	1-250ml
Produce speed	60-100tube/min
Filling precision	≤+/-1%
The power of machine	2.2kw
Air pressure	0.4-0.6mpa

Cosmetic tube sealer ZHF-100YC

Ointments Filling And Sealing Machine ZHF-60Z

Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS
