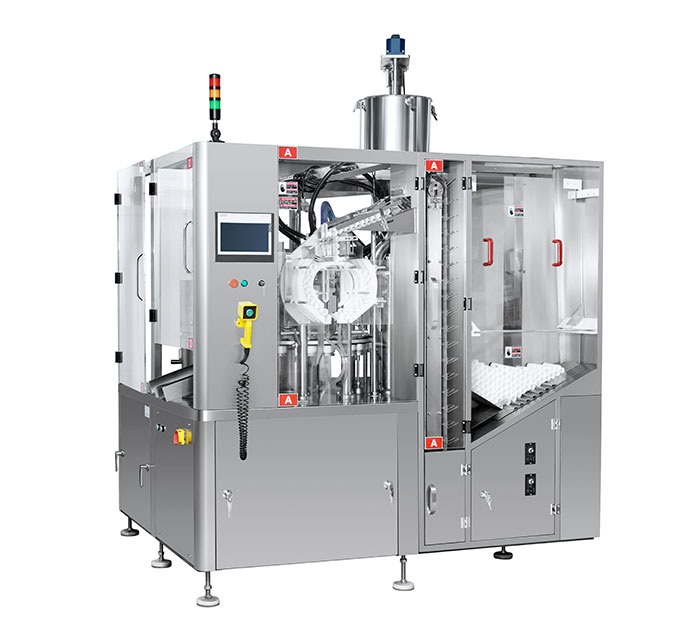

High-speed Double Heads Tube Filler And Sealer ZHF-160

ZHF-160

ZHF-160 tube filling & sealing machine is provided with 2 filling heads and a set of double-branch tube feeing system.

Applicable to: plastic composite tubes , aluminum plastic composite tubes and metal tubes(optional)

Contact Us
High-speed Double Heads Tube Filler And Sealer
High-speed Double Heads Tube Filler And Sealer
ZHF-160 High-speed Double Heads Tube Filler And Sealer
ZHF-160 High-speed Double Heads Tube Filler And Sealer
Hot air
Auto sealing

Optional Devices
  • Externally allocated refrigerator
  • Special-shaped sealing devices (wave type sealing device, arc sealing device, T-shaped punching  hole sealing device, metal pipe folding and sealing device)
  • Jacket and barrel heat preservation device
  • Blending device inside the barrel
  • Blowing and sucking type tube cleaning device
  • Nitriding device before and after filling
  • Automatically controlled material feeding device (pump)
  • Finished tube conveyor
Technical Parameters
Oper ation speed 120/min/(max)
Filling volume 1-300ml
Filling precision ≦±0.5﹪
Suitable tube length 50-240mm
Suitable tube diameter 10-50mm
Power supply 380Volt, 50Hz  (220Volt, 60Hz)
Power of hot-wind generator 3Kw×2
Consumption of compressed air 1.2 m3
Working pressure 0.6 Mpa
Capacity of hopper 70L
Dimensions 2870×1770×2340mm




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS

Food Products & Beverages

Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.

Cosmetic & Personal Care Products

It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.

Pharmaceutical Filling Machines

Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.

Household & Industrial Cleaners

The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
