Metal Tube Filling and Sealing Machine ZHF-80Z

ZHF-80Z

Compact Design

Driving Parts Fully-closed

Pneumatic Tube Washing & Feeding

Intelligent Temperature Control and Cooling System

Easy to Operate and Adjust

316L Stainless Steel Contact Parts to meet GMP Standard

Safety Interlock Shutdown when Door is Open

Overload Protection Provided

Automated Working process from Tube Loading to Finished Products Output

Automatic Orientation Effected by Photoelectric Induction

Contact Us

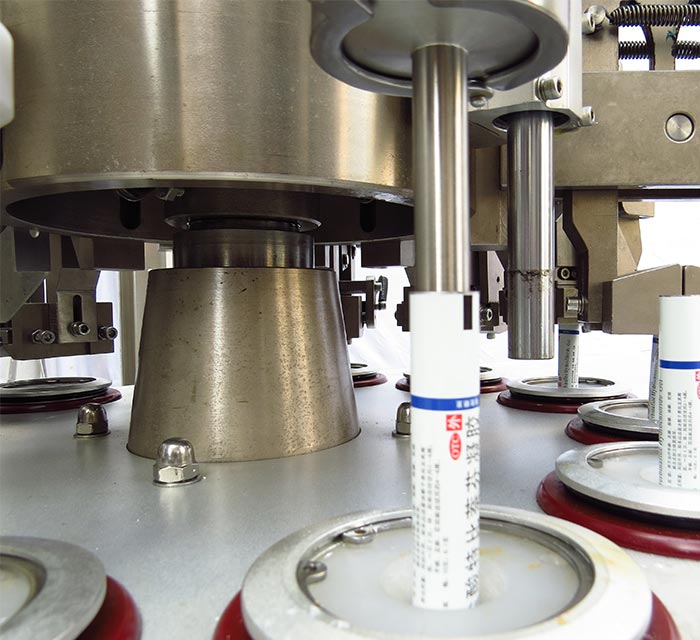

ZHF-80Z Metal Tube Filling and Sealing Machine

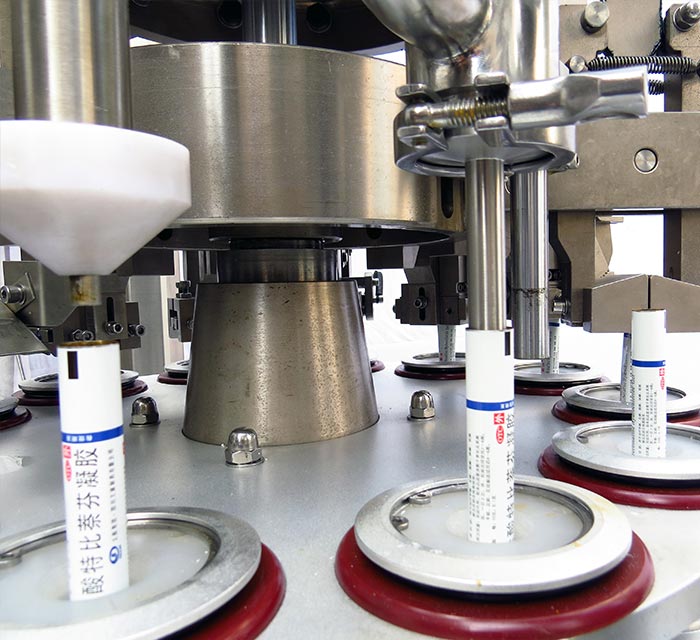

ZHF-80Z Metal Tube Filling and Sealing Machine

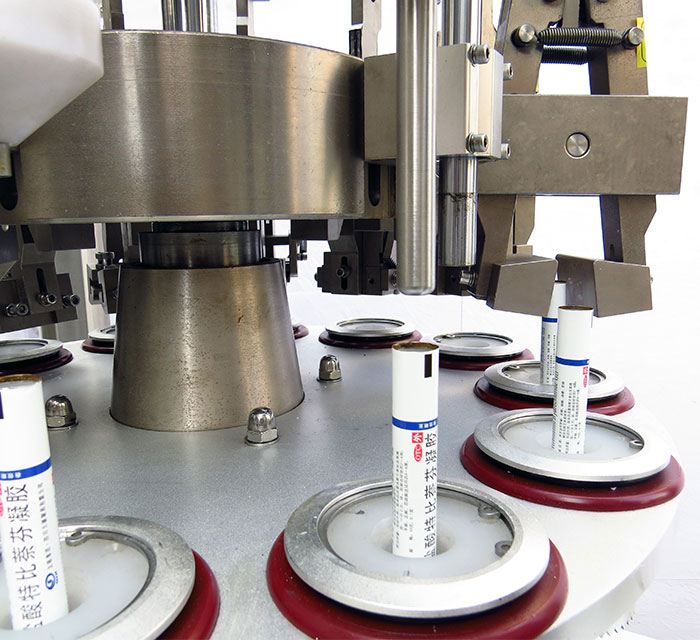

ZHF-80Z Metal Tube Filling and Sealing Machine

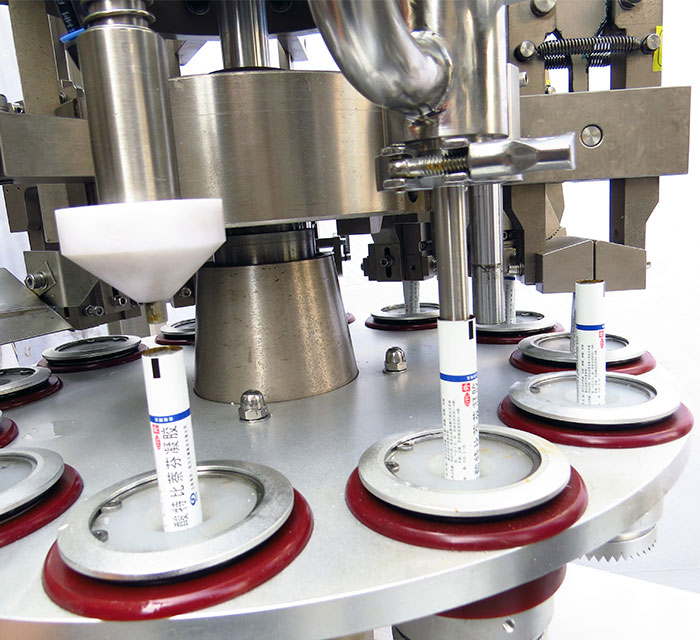

ZHF-80Z Metal Tube Filling and Sealing Machine

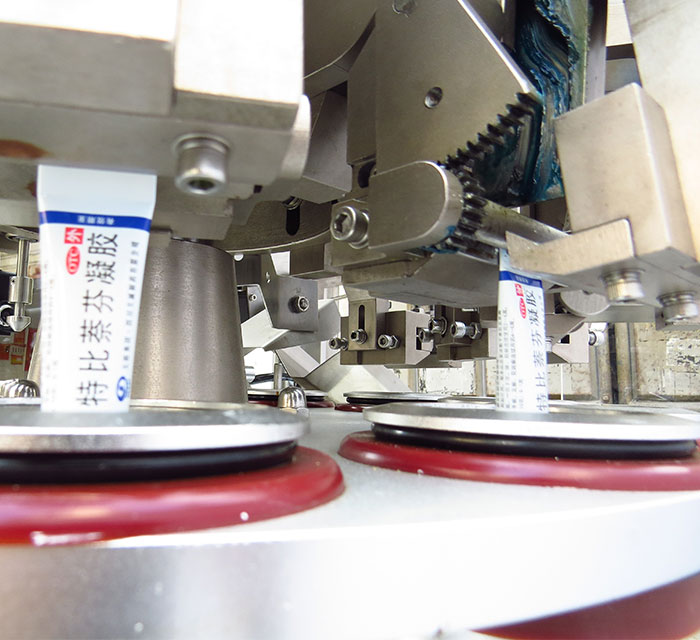

ZHF-80Z Metal Tube Filling and Sealing Machine
ZHF-80Z Metal Tube Filling and Sealing Machine
ZHF-80Z Metal Tube Filling and Sealing Machine

Optional Devices
  • Chiller
  • Date Coding Embossing
  • Automatic Tube Feeding Magazine
  • Change Parts
Technical Parameters
Filling volume 1-300ml/unit (Adjustable)
Filling accuracy ≦±0.5﹪
Capacity 3000-4800 units/hour (Adjustable)
Tube diameter Φ10-50 mm
Tube length 210mm (can order)
Hopper volume 40L
Equipped motor 1.1KW
Machine power 2kw
Dimension 22700×960×2100 (mm)
Power supply 380/220 (Optional)
Weight About1200 Kg


Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS

Food Products & Beverages

Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.

Cosmetic & Personal Care Products

It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.

Pharmaceutical Filling Machines

Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.

Household & Industrial Cleaners

The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
