DTNX-60XB

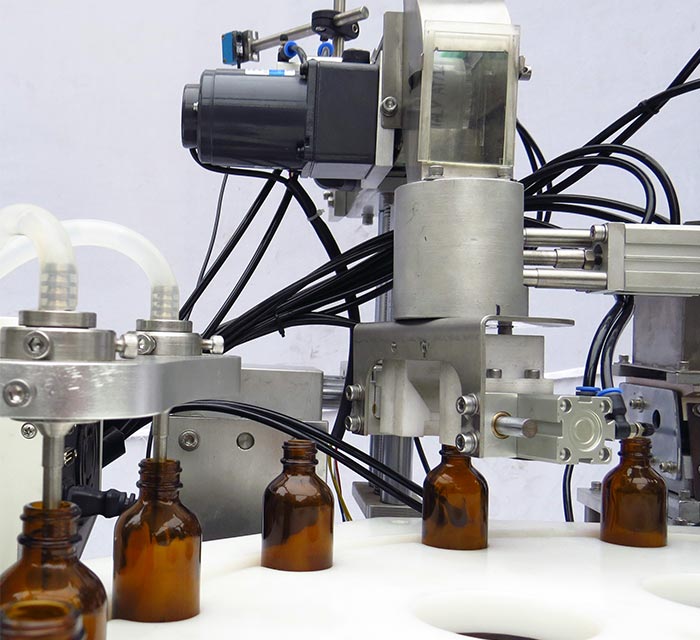

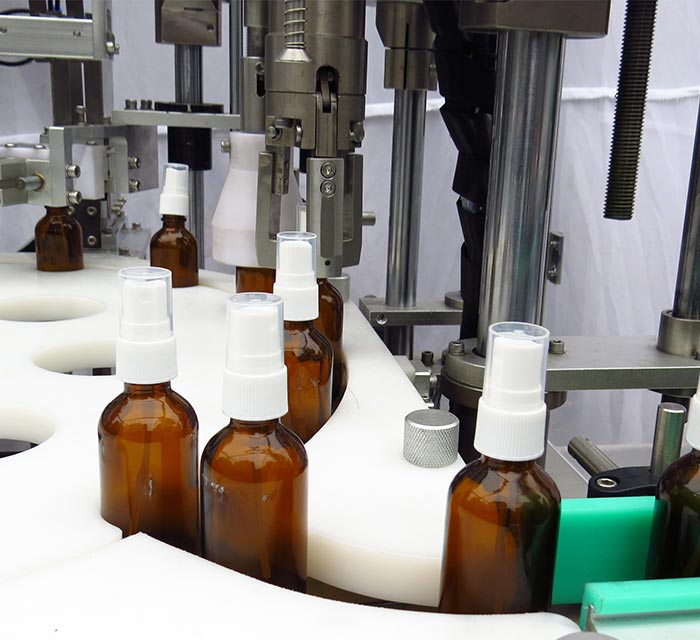

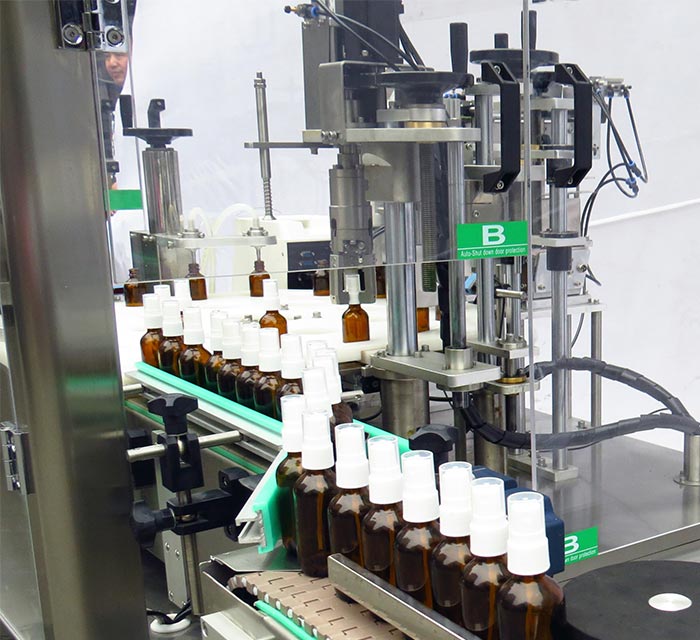

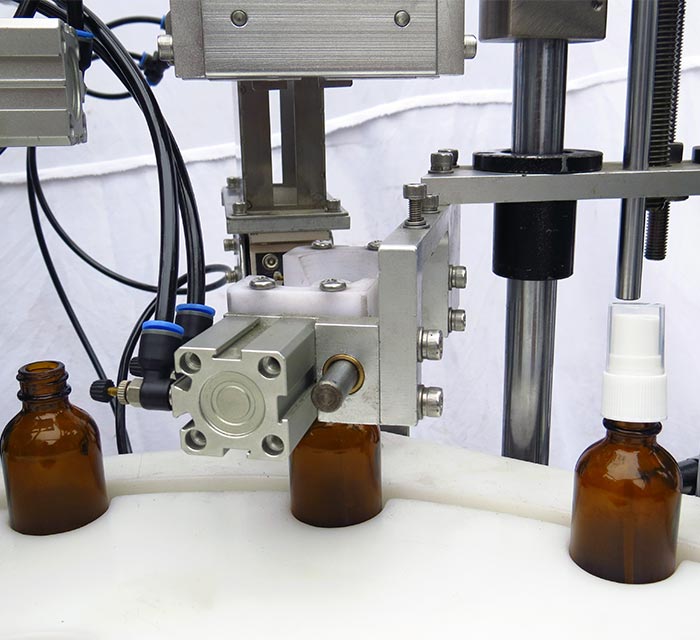

This sprayer pump, glass dropper bottle filling and capping machine includes the turn table feeding bottle, automatic filling, automatic feeding sprayer pumps(glass dropper),capping, labelling and bottle collection table.
This production consists of bottle feeding table, peristaltic pump filling, feeding sprayer pump(glass dropper),pre-capping,servo capping, labelling and bottle collection table.
The singe (double) head automatic ointment filling machine adopts programmable logic controller (PLC) human and machine interface technology, equipped with imported photoelectric track switch from Korea, which is suitable for filling ointment products in the industries such as ointment, oil products, syrup, shampoo, bechamel and fruit juice etc. The filling nozzle will be automatically inserted into the bottle to carry out the filling and then rapidly ascend, which can reduce the air bubbles. The product integrates electric and pneumatic functions into one, with reasonable design, stable performance, accurate quantity, glass table surface, automatic bottle feeding, steady operation without noise, electric speed control to the filling speed and filling volume and convenient maintenance and cleaning. The new type filling equipment is the best choice for the realization of automatic production.
| Filling volume | 5-100ml |
| Speed | 30-40BPM |
| Filling accuracy | ≥99％ |
| Cap feeding rate | ≥99％ |
| Capping rate | ≥99％ |
| Power | 2KW 220V |
| Labelling accuracy | ±1MM |
No, Our factory will produce equipment according to the bottles and caps provided by customers.
We will responsible for all the quality problems.
Pattern needs 30-60 days.
Export standard package or special package according to customer requirement.
Yes, we are OEM supplier.
We have ISO9001, CE,SGS
Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.
It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.
Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.
The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
