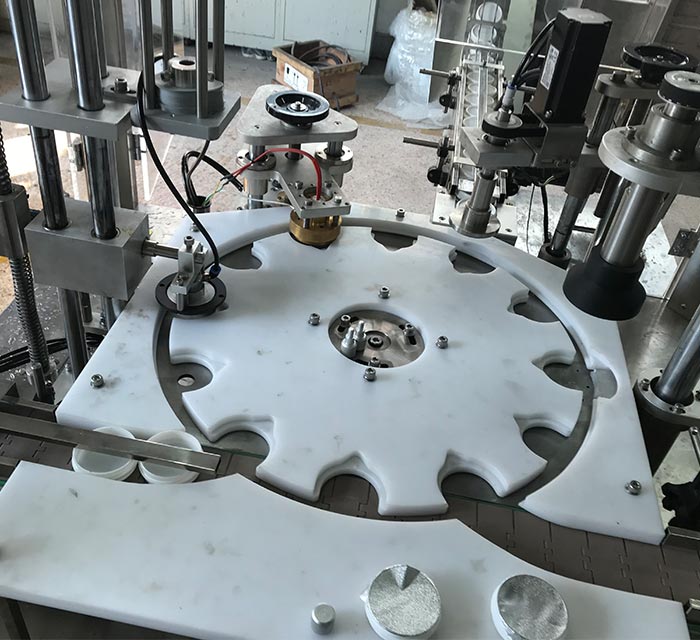

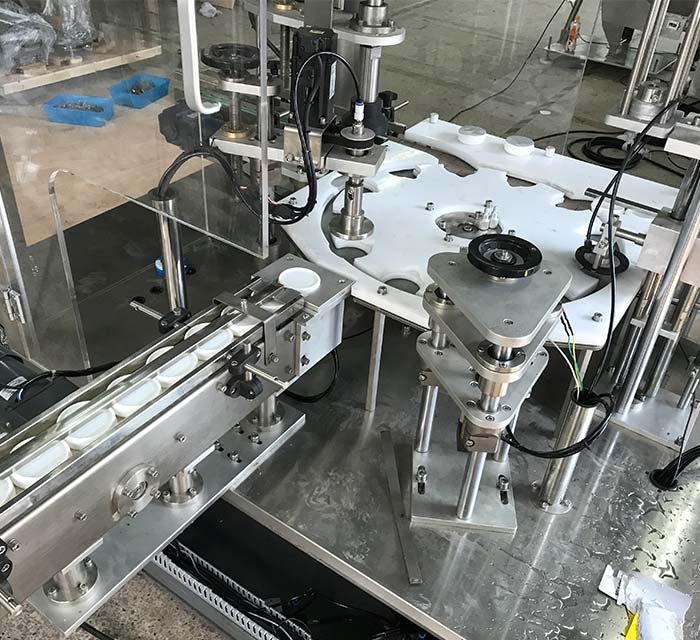

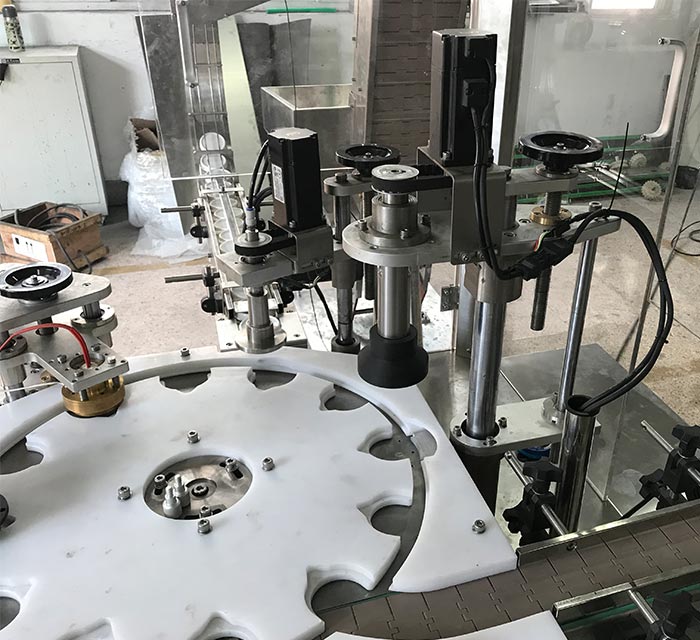

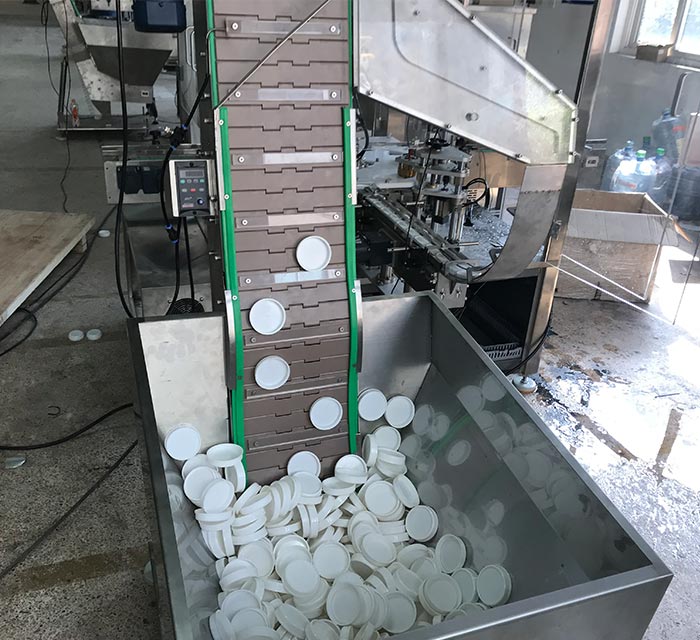

RFXG-40A Hot Filling, Sealing And Capping Machine

RFXG-40A

Hot filling, sealing and capping machine applies to pharmaceutics, foodstuff and chemicals industries; the machine has the function of filling with heat preservation, sealing film on bottle, covering and locking automatically. The material is high viscosity ointment. The control system of the machine adopts technology of PLC and human – machine operation interface, which with the feature of compact structure, easy operation, stable performance.

Contact Us
RFXG-40A Hot Filling, Sealing And Capping Machine
RFXG-40A Hot Filling, Sealing And Capping Machine
RFXG-40A Hot Filling, Sealing And Capping Machine
RFXG-40A Hot Filling, Sealing And Capping Machine
RFXG-40A Hot Filling, Sealing And Capping Machine
RFXG-40A Hot Filling, Sealing And Capping Machine

Technical Parameters

Main motor power

0.4KW

Pusher servo power

0.4KW

Production capacity

30-40pcs/min

Power supply

1P 220V 50HZ

Compressed air

0.6~0.8Mpa

Sealing temperature

245C

Filling volume

45~250ml

Filling accuracy

≦±1%

Dimension

1755*1280*1830mm(not include conveyor and cover neatening device)

Machine weight

600kg

Total power

2KW




Can I get samples from your factory?

No, Our factory will produce equipment according to the bottles and caps provided by customers.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, CE,SGS

Food Products & Beverages

Zungwan Intelligent focus on manufacturing sanitary filling systems to meet the needs of foods and beverages industry. The food filling machines and beverage filling machines are available for applications using viscous products, but the bottling machinery can be easily and thoroughly cleaned. Clean-in-place systems can also be included to assist the operator in cleaning the inline filler. All filling machines are designed for easy setup, simple changeover, minimal downtime for maintenance & cleaning, and maximum versatility.

Cosmetic & Personal Care Products

It's important to the best-suited cosmetic filling machine for your packaging line when it comes to liquids about these industries of personal care, health and beauty. The filling equipments will be ensured working effectively for many years by using durable machines and special designs to handle these types of liquids products.

Pharmaceutical Filling Machines

Our pharmaceutical filling machine ensures a high degree of compatibility with the chemicals you process, adapting to the viscosity, acidity, and foaming properties of different pharmaceuticals. And they are easy to clean to maintain efficiency. Our product range is complete, so whether you just need a single machine or have to build a filling and packaging line from scratch, Zungwan can provide you with the corresponding results.

Household & Industrial Cleaners

The automatic filling machines can function safely and efficiently no matter the viscosity, acidity or foaming properties. Different corrosion and foaming properties would impact the type of bottle filling machines. Some chemicals may be volatile, or cause corrosion on your automatic filling equipment. We provided the best janitorial product filling systems for you, ensuring the compatibility with the chemical products.
